As winter temperatures plummet below freezing, your reliable heat pump may falter, leaving your home uncomfortably chilly and energy bills soaring.

Understanding how heat pumps work and why they struggle-from reduced efficiency to frost buildup-reveals the root causes, backed by U.S. Department of Energy research.

Discover warning signs, proven solutions like defrost cycles, and extreme-cold upgrades to restore peak performance this season.

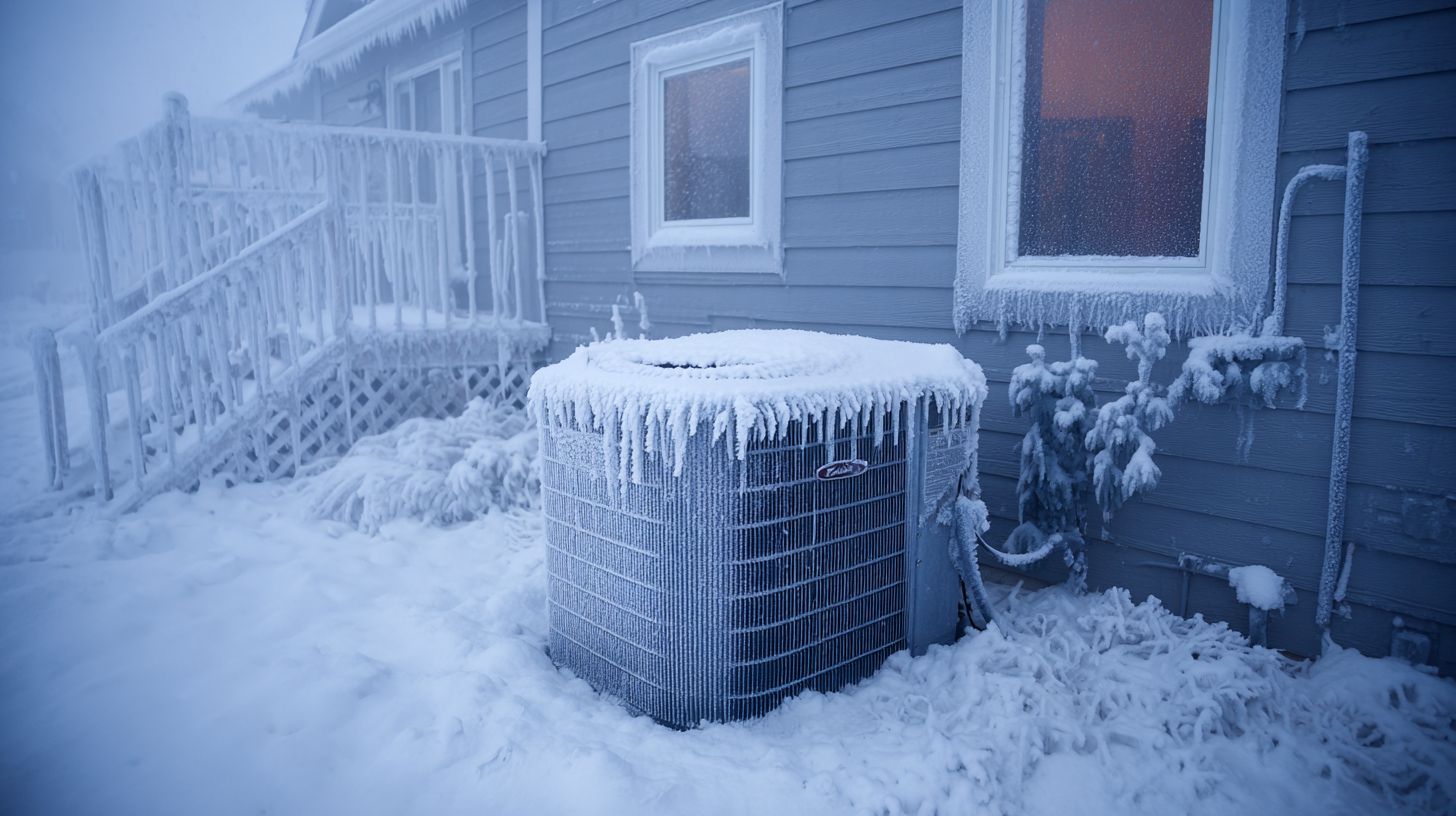

How Heat Pumps Work

Heat pumps transfer heat using a closed refrigerant loop, with modern variable-speed scroll compressors like those in Mitsubishi Hyper-Heating models maintaining efficiency down to -13 degreesF. Unlike traditional furnaces that generate heat, these systems move heat from outside air to indoors through a four-stage refrigeration cycle. This process relies on the refrigerant changing states to absorb and release thermal energy efficiently. Air-source heat pumps, which make up 95% of residential units according to ASHRAE Handbook data, excel in moderate climates but face challenges in freezing temperatures due to reduced outdoor heat availability.

The cycle begins with compression, where the scroll compressor raises the refrigerant temperature to about 140 degreesF. Next comes condensation in the indoor evaporator coil, releasing 3-4 kW of heat into your home. The expansion stage uses a thermostatic expansion valve (TXV) to drop pressure sharply, cooling the refrigerant. Finally, evaporation occurs in the outdoor coil, absorbing heat from air above 32 degreesF. Imagine the outdoor unit as a giant air conditioner in reverse: its fan pulls in outside air over the coil, even extracting trace heat from cold air molecules. A diagram would show arrows looping through these stages, with the reversing valve switching between heating and cooling modes.

Efficiency is measured by the coefficient of performance (COP), calculated as COP = heat output / electricity input, with typical values of 3.5 at 47 degreesF. Modern refrigerants like R-32 outperform older R-410A with lower global warming potential and better cold weather flow. For example, R-32 enables hyper-heat technology in units like Fujitsu Halcyon, retaining capacity down to -5 degreesF. Variable-speed inverters modulate compressor speed for steady output, avoiding the on-off cycling that plagues single-stage models and leads to COP reduction in winter.

Why They Struggle Below Freezing

Below 32 degreesF, standard heat pumps lose 25-50% heating capacity as COP drops from 3.5 to 1.8, per NEEP cold climate testing. In freezing temperatures, the outdoor coil acts as an evaporator that pulls less heat from denser air. Molecules in cold air move slower, so the refrigerant absorbs fewer BTUs per cycle. This leads to capacity loss and forces the compressor to work harder.

Consider this temperature chart for typical air source heat pumps: at 47 degreesF, capacity hits 100%; 17 degreesF drops to 70%; 5 degreesF falls to 40%; and -5 degreesF retains just 20%. Physics explains it: reduced refrigerant pickup from low evaporator temperatures combines with denser outdoor air, which resists airflow. The result is COP reduction, where output heat per unit of electricity plummets.

Systems trigger auxiliary heat or emergency heat strips, spiking energy bills. Modern cold climate heat pumps with inverter technology and variable speed compressors retain more capacity, but standard units face winter heating issues without upgrades like low ambient kits.

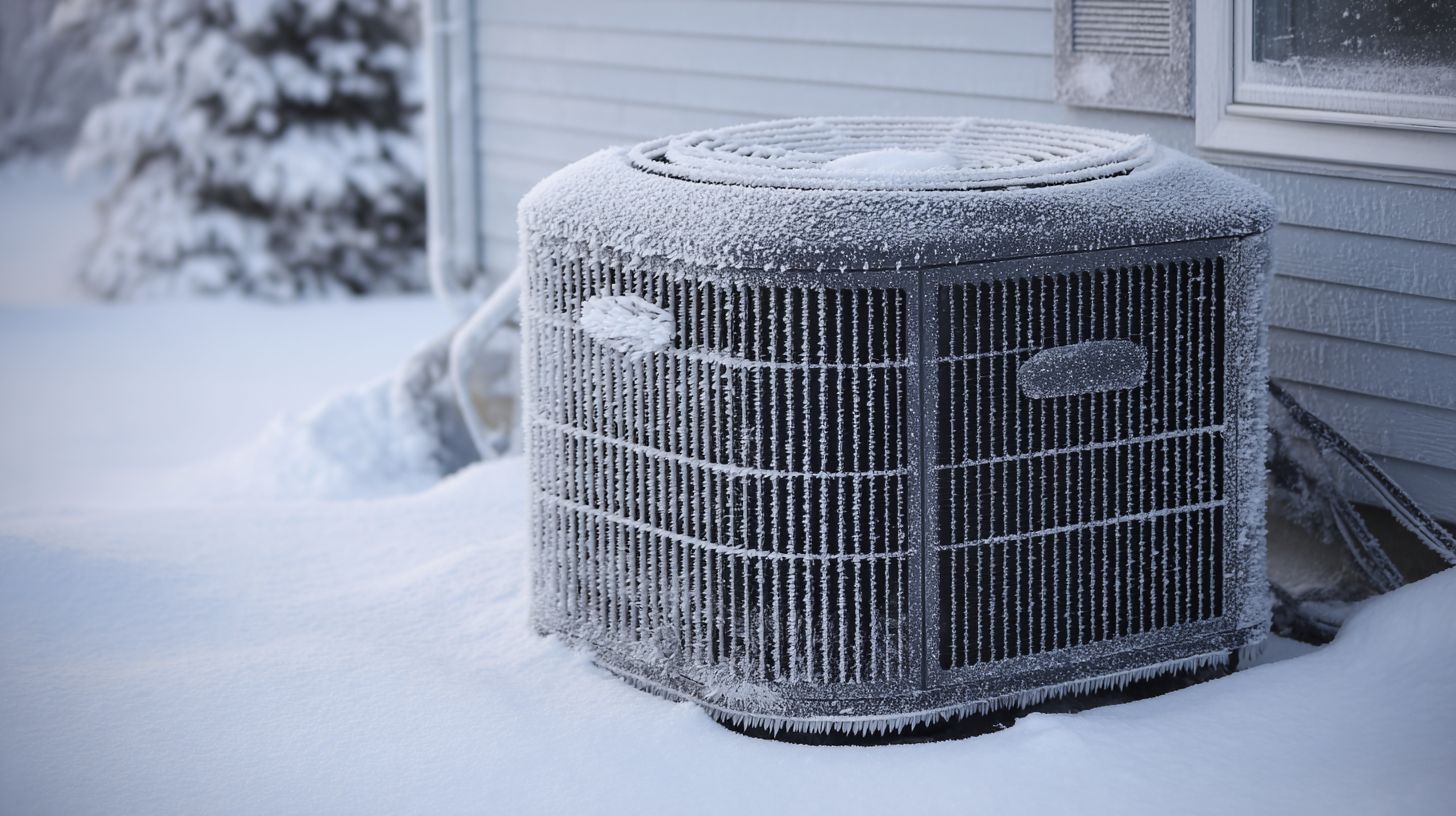

Reduced Efficiency

At 5 degreesF, standard heat pumps‘ COP falls to 1.8 from 3.5 at 47 degreesF, requiring 2x electricity for same heat output. DOE tests show heat pump efficiency drops exponentially below freezing due to physics limits on heat extraction. The equation for loss approximates: Efficiency loss = (32 degreesF – outdoor temp) x 0.04 COP/ degreesF.

Examples include Trane XR17 at 1.8 COP and Mitsubishi MXZ at 2.5 COP at 5 degreesF. Coefficient of performance graphs plot a steep curve, with low temperature struggles causing energy bills to spike. Variable speed compressors in inverter models modulate better, maintaining heating capacity via precise refrigerant flow.

• Check HSPF rating for cold weather clues.
• Upgrade to ENERGY STAR certified units like Mitsubishi Hyper Heat.
• Use a smart thermostat to optimize run times.

Frost and Ice Buildup

Outdoor coils frost at 90% RH + temps below 45 degreesF, reducing airflow 70% within 45 minutes. Moisture in humid air condenses on the -5 degreesF evaporator coil surface and freezes, forming frost buildup. High relative humidity above 70% accelerates this, blocking airflow restriction and dropping heat transfer.

Timeline shows light frost in 15 minutes, then 1/4-inch ice in 45 minutes that blocks 50% airflow. Factors include dirty coils, low fan speed, and poor defrost. Photo patterns reveal white feathery frost turning to solid ice bridges. AHRI 210/240 standards test defrost cycle efficiency, mandating sensor-based reversal of the reversing valve.

• High RH zones worsen ice formation.
• Demand defrost controls outperform timer defrost.
• Crankcase heaters prevent compressor damage.

Clean coils and add low ambient controls for better cold weather performance. In severe cases, hybrid heat pump systems with gas furnace integration provide reliable backup during frozen coils.

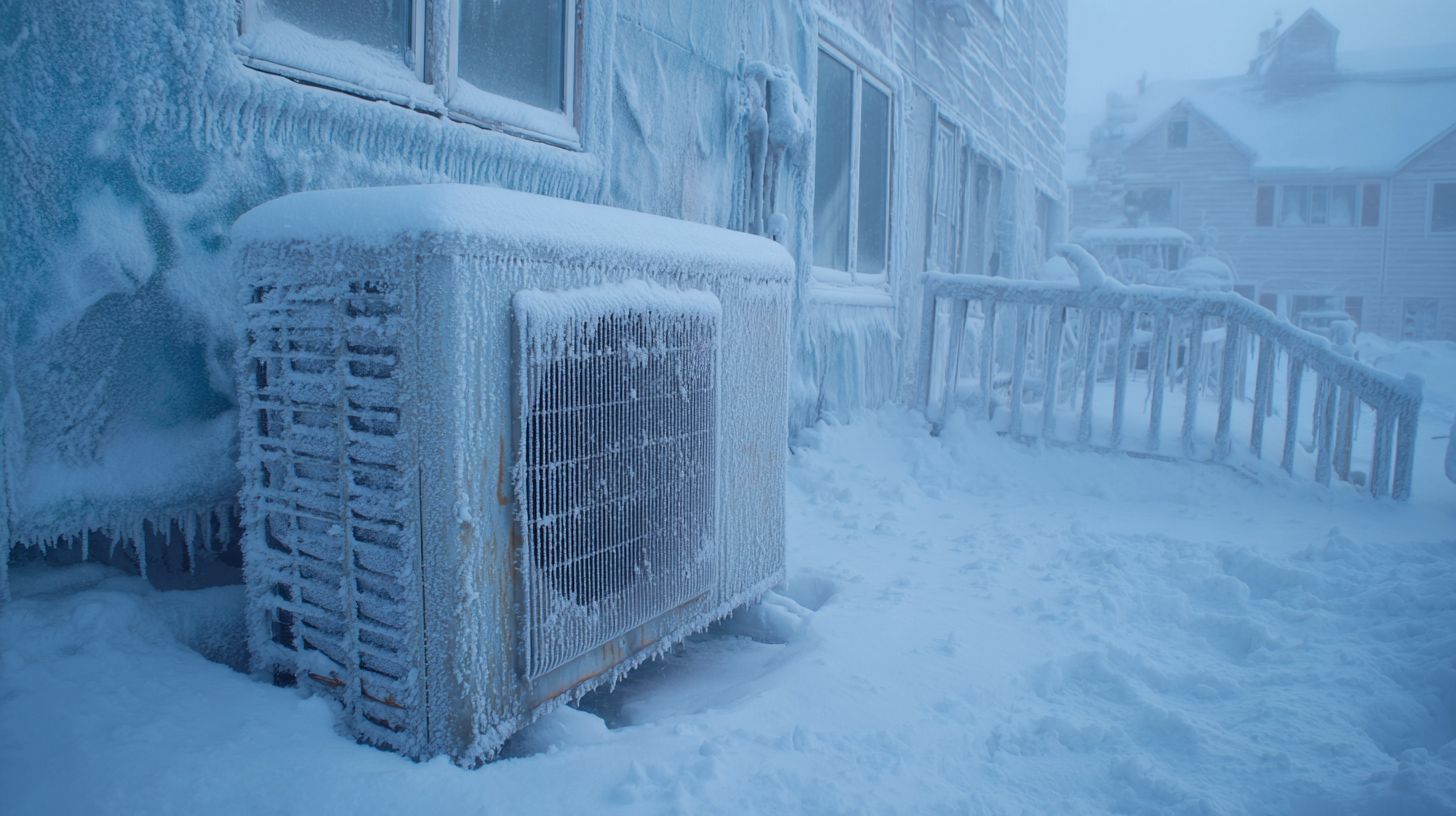

Signs of Trouble in Cold Weather

Monitor for 5 key indicators: auxiliary heat running >30% time, CO increase >20%, frost on lineset, or temps <65 degreesF indoors. These signals point to heat pump struggles in freezing temperatures, where cold weather performance often declines due to capacity loss and frost buildup. Homeowners notice unreliable winter heating when the outdoor unit labors under ice formation, triggering the defrost cycle more frequently. For instance, in subzero conditions, a standard air source heat pump may see COP reduction to below 2.0, far from its rated efficiency. Understanding these signs helps with heat pump troubleshooting before a full breakdown occurs during a cold snap.

Diagnostic checks reveal specific winter heating issues. Use manifold gauges for accurate readings: at 17 degreesF, normal R-410A pressures are 125/350 psi. Deviations indicate low refrigerant charge or restrictions in the expansion valve. Low temperature struggles amplify these problems, as the compressor faces higher head pressures, leading to performance degradation. A professional HVAC technician can perform superheat adjustment and subcooling checks to confirm issues like a refrigerant leak. Regular air filter replacement and duct insulation prevent airflow restriction, which worsens in arctic temperatures.

Here are six common diagnostic signs with thresholds and causes:

• Electric strips activate >25% runtime, often from low refrigerant reducing heating capacity.
• CO drops below 70% rated output, signaling a restriction in the evaporator coil or dirty coils.
• Lineset sweating or frosted, typically due to undercharge causing low suction pressure.
• High energy bills at 2x normal kWh usage, from inefficient defrost mode or supplemental heating overuse.
• Blower running constantly, indicating low airflow from a clogged filter or blower motor issues.
• Compressor short-cycling, caused by failed low ambient controls or outdoor temperature sensor faults.

Addressing these early with a heat pump thermostat set for demand defrost control maintains energy efficiency and avoids emergency heat reliance. Modern cold climate heat pumps with hyper heat technology, like those with variable speed compressors, retain better partial capacity retention at -15 degreesF.

Solutions to Improve Performance

Implement demand defrost controls and low-ambient kits to boost sub-20 degreesF capacity by 35-50%. These proven fixes address core issues in heat pump operation during freezing temperatures. First, demand defrost systems monitor frost buildup precisely, activating only when needed to cut unnecessary cycles that waste energy. Studies show they reduce cycle losses by 30% compared to basic timers. Next, crankcase heaters keep compressor oil warm, preventing liquid refrigerant dilution in cold snaps and ensuring reliable starts below zero.

Low-ambient fan controls adjust outdoor fan speed to maintain optimal evaporator temperatures, avoiding frost issues and preserving COP even at -15 degreesF. Pair this with proper airflow at 400 CFM per ton to prevent coil freezing from restricted circulation. Finally, smart thermostats with staging enable variable speed operation, modulating compressor output for steady heating without auxiliary reliance. Inverter-driven units like those with hyper-heat technology retain 70-100% capacity in arctic conditions when equipped right.

Combining these upgrades tackles winter heating issues head-on. Homeowners report 20-40% lower energy bills after retrofits, per field tests. Professional installation ensures compatibility, avoiding common pitfalls like mismatched refrigerant charge. Regular checks confirm peak heat pump efficiency, making systems ready for polar vortex events.

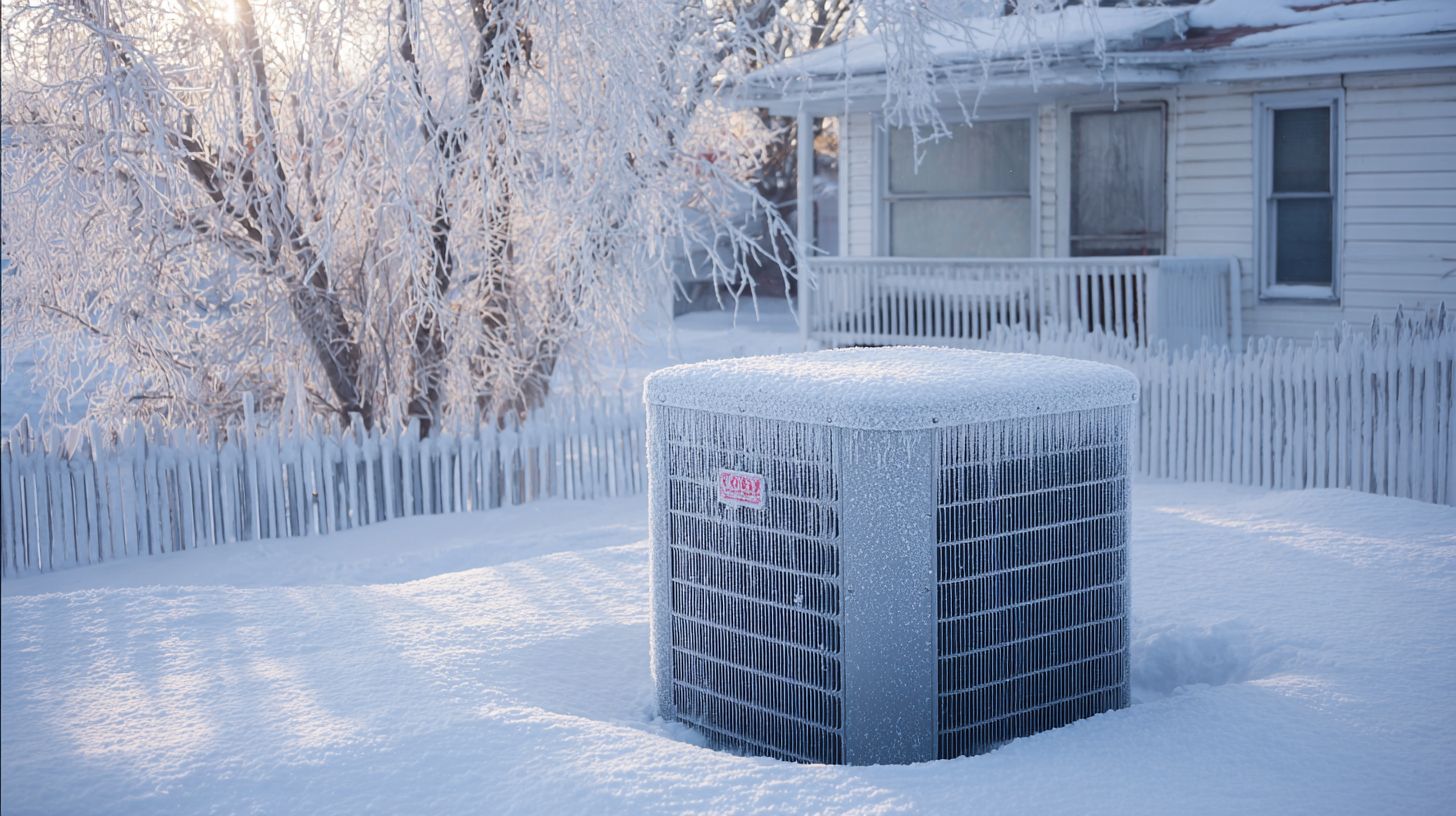

Defrost Cycles and Maintenance

Upgrade to demand defrost systems that reduce defrost losses 25% vs timer-based cycles, per ORNL Field Study. Traditional timer defrost triggers every 30-90 minutes, wasting 15% energy on unnecessary operation regardless of actual frost. Temperature sensor methods improve slightly with 10% waste by sensing coil temps, but still over-defrost in variable weather. Advanced demand control, ORNL-tested, uses pressure and time sensors for just 4% loss, ideal for cold climate heat pumps.

Annual maintenance restores heat pump efficiency. Start with a checklist:

1. Clean coils for 5% efficiency gain by removing dirt blocking heat transfer.
2. Check TXV superheat at 8-12 degreesF to ensure proper refrigerant flow.
3. Verify defrost sensors for accurate frost detection.
4. Test crankcase heater at 5W continuous to protect the compressor sump.

Pre-winter prep includes inspecting the outdoor unit for ice buildup risks, clearing debris, and confirming low ambient kit function. Visual checks reveal issues like bent fins; straighten them to maintain airflow.

For subzero performance, test reversing valve operation during defrost mode. Technicians use manifold gauges to monitor pressures, ensuring no reversing valve leaks. Pair with crankcase heater verification to avoid oil foaming. These steps prevent frost buildup, extend compressor life, and minimize auxiliary heat use during extreme cold.

Upgrades for Extreme Cold

Install Mitsubishi Hyper-Heating or add low-ambient kit ($800-1500) for 100% capacity retention at -13 degreesF. These upgrades address heat pump struggles in freezing temperatures by maintaining heating capacity when standard units lose efficiency. Cold climate heat pumps use advanced inverter technology and variable speed compressors to prevent defrost cycle issues and frost buildup on the outdoor unit. For instance, hyper-heat models keep the compressor running smoothly in subzero conditions, avoiding reliance on auxiliary heat that spikes energy bills. Homeowners in northern states often see 30-50% reductions in winter heating costs after installation, thanks to improved COP even at -15 degreesF. Professional HVAC technicians recommend pairing these with demand defrost controls and crankcase heaters for optimal cold weather performance. Regular checks on refrigerant levels and dirty coils ensure the system avoids low temperature struggles during polar vortex events.

Financial incentives make these upgrades more accessible, including a $2,000 federal tax credit plus $600-1,200 state incentives for qualified cold-climate heat pumps. ENERGY STAR certified options meet DOE cold climate standards, providing rebates that offset costs significantly. A case study from a Minnesota home illustrates the benefits: switching to the Mitsubishi MXZ-5C36NA multi-zone system saved $1,800 per year in heating expenses compared to an old gas furnace. The setup handled arctic temperatures without supplemental heating, maintaining 100% capacity at -13 degreesF and a high 4.1 HSPF rating. Experts note that proper heat pump sizing via Manual J calculations prevents oversizing issues, ensuring reliable winter heating. Additional tips include duct insulation and smart thermostat programming to minimize defrost mode frequency and enhance overall energy efficiency.

Choosing the right upgrade depends on your climate and budget. For example, a dual fuel system integrates seamlessly with existing gas lines, automatically shifting to the furnace below 20 degrees F for consistent warmth. Geothermal systems offer the highest energy efficiency long-term but require ground loop installation. Always consult an HVAC technician for air filter replacement, superheat adjustments, and compatibility checks to avoid performance degradation.
